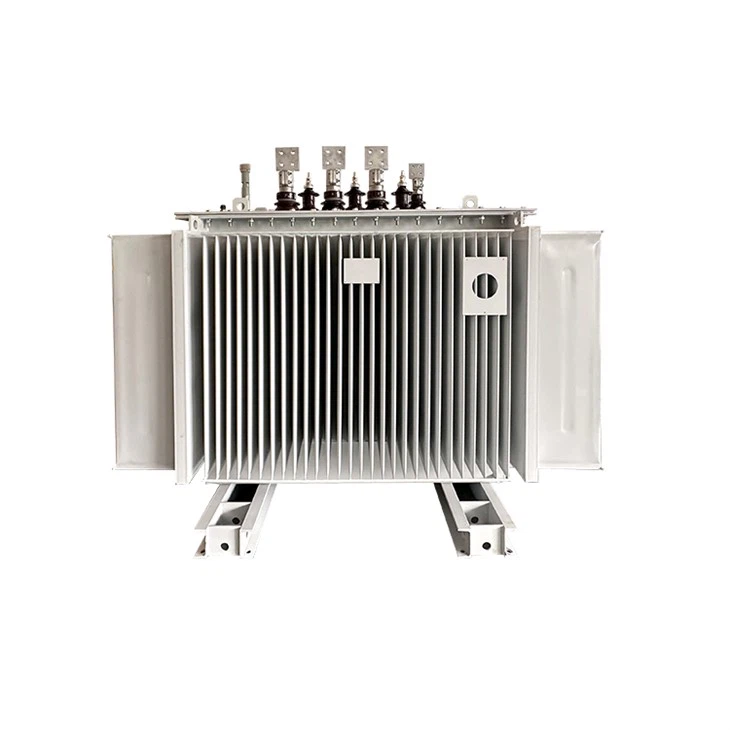

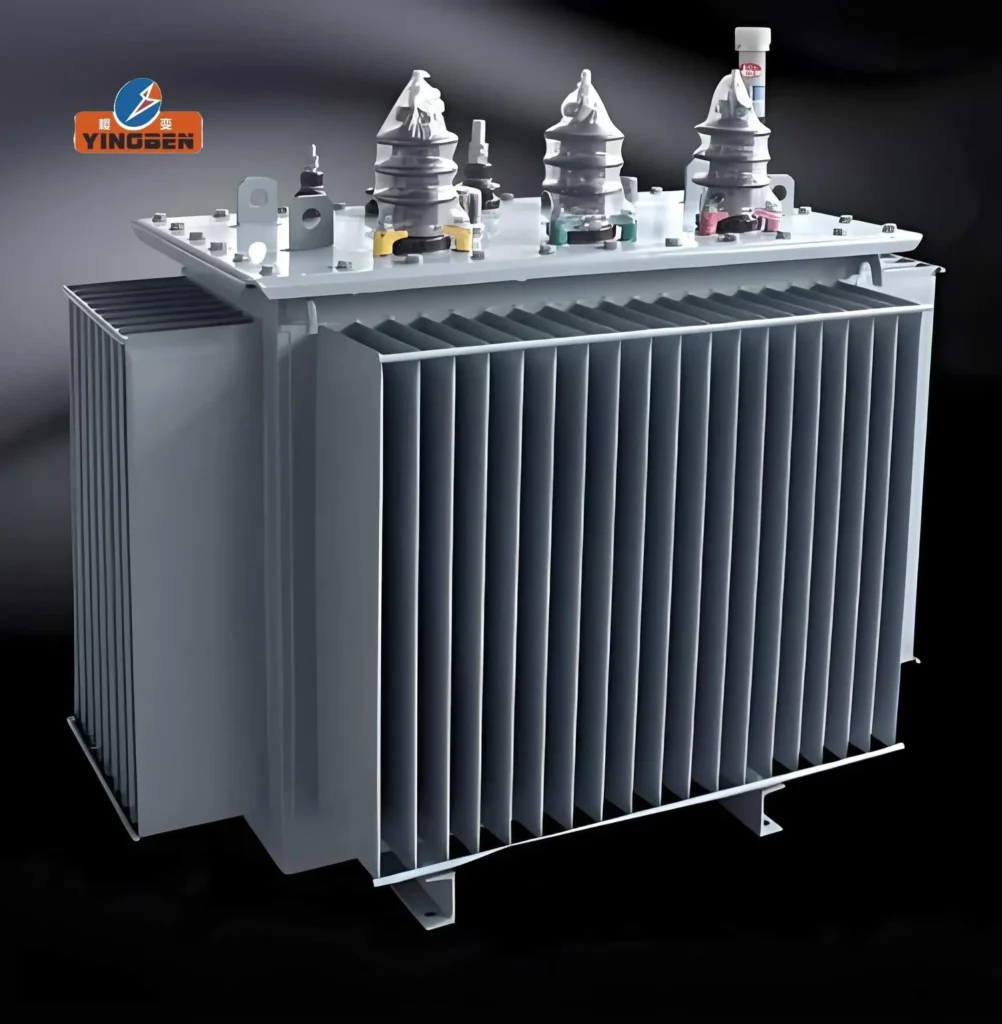

2500 Kva Oil Filled Corrugated Full-sealed Transformer
Transformer type: Hermetically Sealed Transformer
Capacity: 800KVA, 1000KVA, 1600KVA, 2000KVA, 2500KVA and customized type
Middle Voltage: 6.6kV, 11kV, 13.2kV, 22kV, 33V and customized type
Standard: IEC/IEEE/ANSI/GOST/NEMA/ECO/MEPS/ESKOM/MS/JEC/TEIAS
In 2019, two 2500 KVA transformers were exported to Cambodia with a rated capacity of 2500 KVA, a primary voltage of 22 KV, and a secondary voltage of 0.4 KV. These two transformers are used for local public utilities. The products have been specially customized, including enhanced insulation systems, additional cooling capacity, and seismic design to ensure long-term stable operation under the complex local climatic conditions and geological environment.
2500 kVA oil Filled Corrugated Transformer Product Description
This 2500 KVA three-phase oil-immersed distribution transformer is a high-efficiency and high-reliability power equipment, widely used in various distribution systems. It converts high-voltage electric energy into low-voltage electric energy through the principle of electromagnetic induction to meet different power needs. Manufactured with high-quality materials and advanced technology, this 2500 KVA transformer boasts excellent performance and a long service life.
Main Features of 2500 KVA Transformer
No-load Loss: ≤ 0.1% (relative to rated power)
Load Loss: ≤ 0.5% (relative to rated power)
Energy Efficiency Level: Meets the Level 1 energy efficiency standard of GB20052-2013
Overload Capacity: Can operate at 120% of rated load for 2 hours without cooling
Short-circuit Voltage: 5% ± 10%
Noise Level: ≤ 55 dB(A)
Operating Temperature Rise: ≤ 65°C (relative to ambient temperature)
Vibration Coefficient: ≤ 2.5 mm/s
Dimensions: Length × Width × Height (specific dimensions vary by model)
Weight: 300 kg – 2000 kg (varies by model)
Cooling Method: Natural air cooling/forced air cooling (customizable based on requirements)
2500kVA oil Filled Corrugated transformer Core Design Features
Sealing System
Rectangular corrugated oil tank with cork rubber sealing
Fully sealed construction (no conservator tank)
Thermal expansion managed through corrugated plate elasticity
Magnetic Circuit
Oval-section winding and core structure
Reduced core column width and yoke height
Benefits: Shortened magnetic path, decreased iron weight, lower core losses
Structural Advantages
Compact footprint (30-40% space savings vs. conventional units)
Reduced total weight (15-25% lighter than open-type equivalents)
Accessories for 2500 KVA Three Phase Oil Filled Distribution Transformer
- Conservator Tank:
- Function: Maintains the oil level in the transformer and allows for oil expansion and contraction due to temperature changes.
- Features: Fitted with a breather to filter out moisture and dust from the air entering the conservator.
- Breather:
- Function: Prevents moisture from entering the transformer oil by using silica gel.
- Features: Silica gel changes color as it absorbs moisture, indicating when it needs replacement.
- Buchholz Relay:
- Function: Detects gas accumulation and sudden oil flow in the transformer, indicating internal faults.
- Features: Provides an alarm and trips the transformer to prevent damage.
- Oil Temperature Indicator (OTI):
- Function: Monitors the temperature of the transformer oil.
- Features: Equipped with alarm and trip contacts to signal overheating.
- Winding Temperature Indicator (WTI):
- Function: Measures the temperature of the transformer windings.
- Features: Comes with alarm and trip contacts for over-temperature protection.
