Custom 3250kVA Multi-Winding Dry-Type Transformer for Institute of Plasma Physics, Chinese Academy of Sciences
Specialized High-Requirement Power Solution for PSM Modules | 10kV/900V | TZ Copper Core)
Key Highlights (Bullet Points – Above the Fold)
- Exclusive Partner Selection: In 2025, after a rigorous screening process, the Institute of Plasma Physics, Chinese Academy of Sciences selected yingbeg as the sole R&D and manufacturer for this specialized custom transformer project.
- Specialized Customization: A typical high-requirement custom product designed to meet specific isolation needs for PSM power modules.
- Complex Winding Structure: Features a unique 36-secondary winding configuration (1Y / 18Y / 18Δ) to ensure independent operation of multiple power units.
- Premium Materials: Built with high-conductivity TZ Copper windings and superior epoxy resin casting for thermal stability.
- Strict Compliance: Fully meets strict technical indicators including <0.5% no-load current and <4.5% impedance voltage.
Project Background & Selection
Trusted by Leading Research Institutions
In 2025, the Institute of Plasma Physics, Chinese Academy of Sciences initiated a critical procurement project for their PSM (Pulse Step Modulator) power supply system. Facing complex technical requirements for electrical isolation and harmonic suppression, the Institute conducted a comprehensive and rigorous screening of potential suppliers.
yingbeg was ultimately chosen as the sole R&D and manufacturing partner for this customized specialized transformer. This selection validates our ability to handle specialized, high-specification orders that standard manufacturers cannot fulfill. We successfully delivered a solution that balances complex multi-winding architecture with reliable performance.
Technical Specifications
| Feature | Specification | Notes |
|---|---|---|
| Product Type | Three-phase Dry-type Transformer | Epoxy Resin Cast Coils |
| Rated Capacity | 3250 kVA | High load capability |
| Voltage Ratio | 10kV / 900V | Custom stepped output |
| Winding Config | 1 Primary / 36 Secondary | 1Y + 18Y + 18Δ (Star/Delta mix) |
| Core Material | TZ Copper | High conductivity, low loss |
| No-Load Current | < 0.5% | High efficiency standard |
| Impedance Voltage | < 4.5% | Optimized for PSM modules |
| Cooling System | Intelligent Temp Control + Fans | Visible in product photo |
Design & Engineering Details
Multi-Winding Isolation Technology

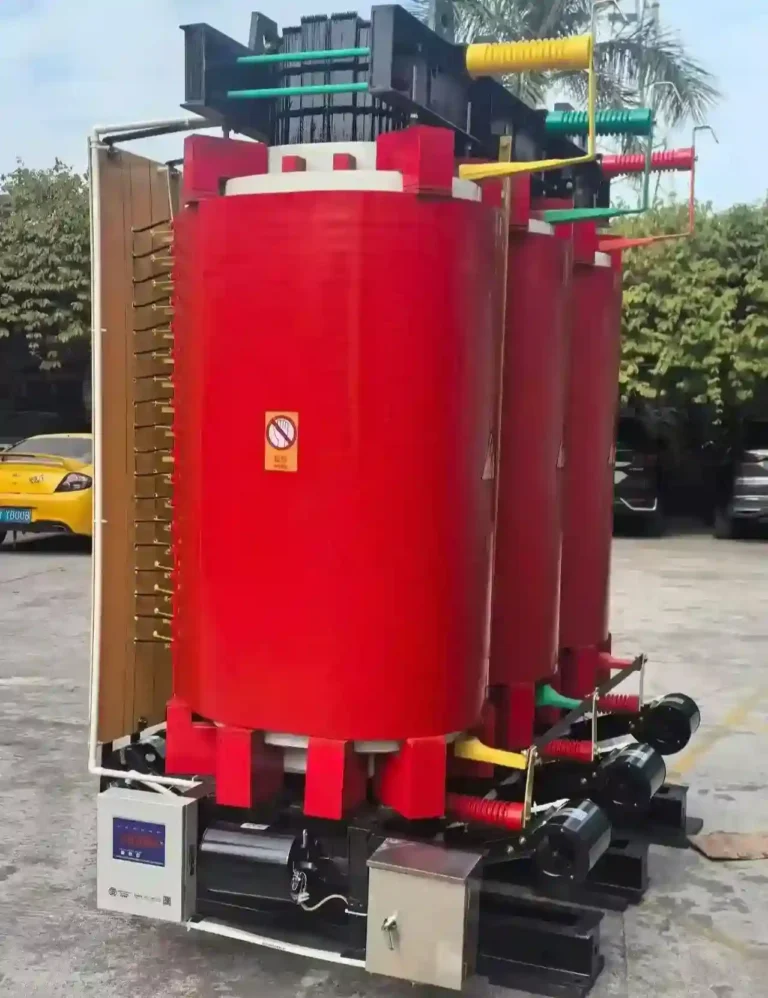

As seen in the product image, the transformer utilizes a complex arrangement of high-voltage bushings (Yellow, Green, Red phases). This corresponds to the internal 18 Star (Y) and 18 Delta (Δ) secondary windings. This design is not for general distribution but is specifically engineered to provide isolated power channels for sensitive scientific equipment, preventing interference between modules.
Robust Construction
The unit features a robust epoxy resin casting process (visible in the red coils), ensuring resistance to moisture and mechanical stress. The base includes a dedicated control box for temperature monitoring and fan operation, ensuring the unit remains within safe operating limits during continuous research operations.
